请老师帮忙修复KDJ箭头显示错位问题，祝大吉大利，非常感谢！

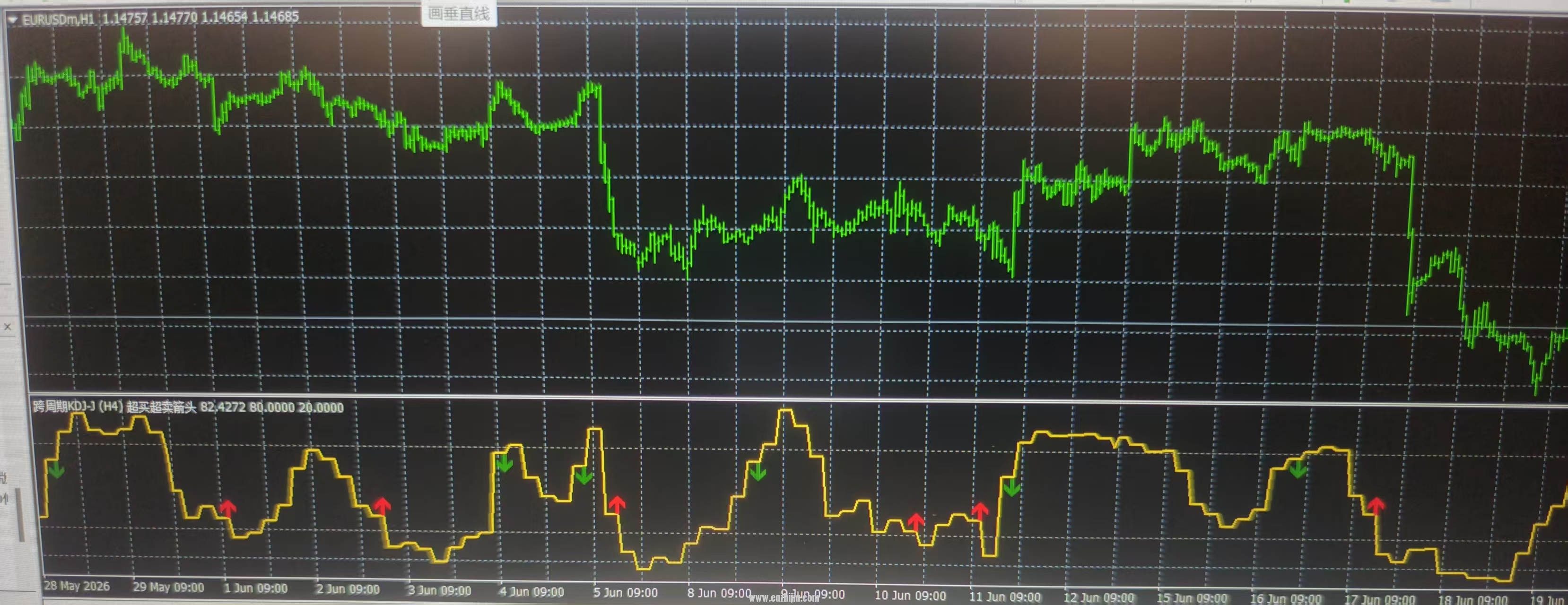

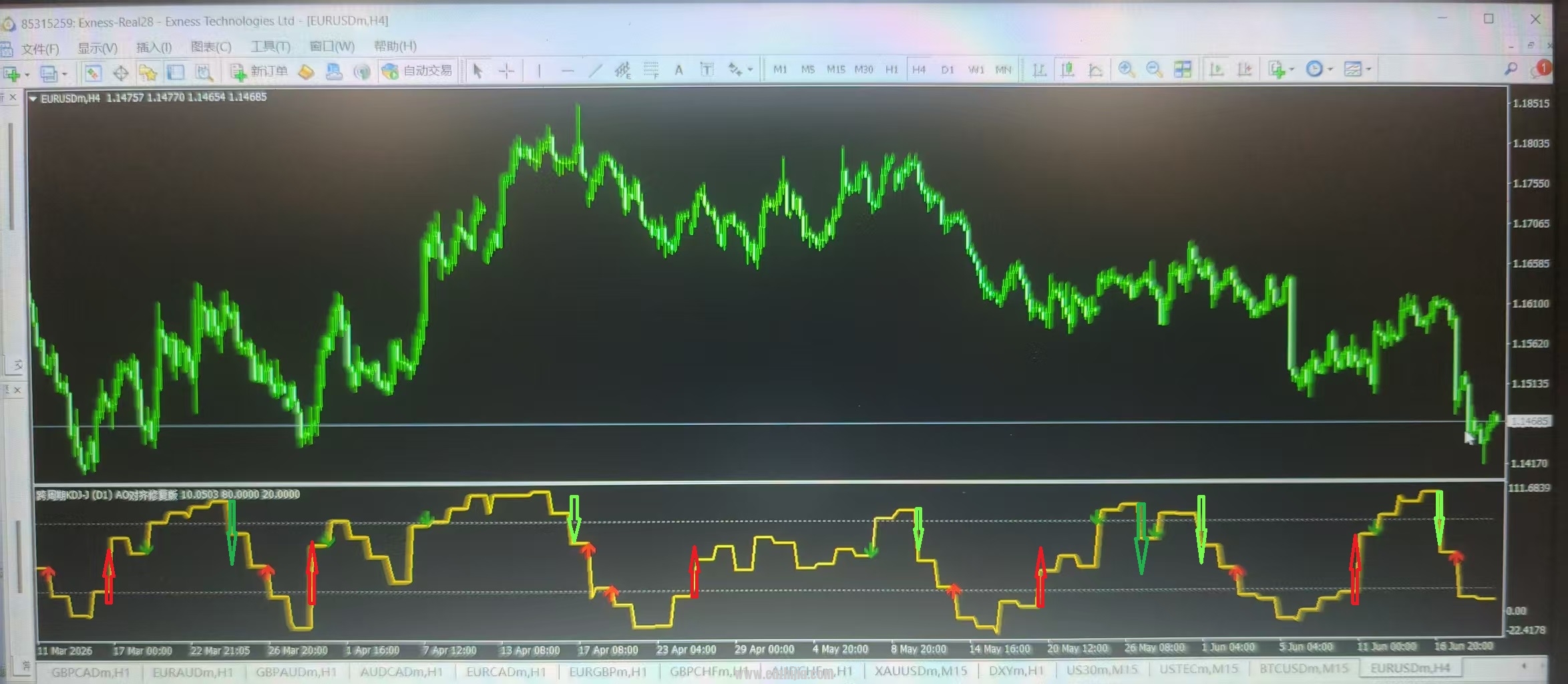

请帮我修复mt4跨周期kdj代码，只修复箭头问题，逻辑框架不动。指标加载后出现的错误：箭头显示位置偏移错乱。正确的显示如下：默认当j值上穿超买线100以上后，又回落下穿100形成死叉时生成绿色向下箭头，默认当j值下穿超卖线0以下后，又上穿0形成金叉时生成红色向上箭头，箭头放在交叉点上。超买超卖参数可调，调整超买超卖参数后，箭头的位置落在调整后的金叉死叉的交叉点上。


//+------------------------------------------------------------------+
//|                                        跨周期KDJ_J值_箭头_超卖线最终修复版.mq4 |
//| 修复1：箭头严格条件 前J<0现J≥0红箭头；前J>100现J≤100绿箭头
//| 修复2：参数修改强制全量清空缓冲区，消除残留水平线、残留箭头
//| 修复3：箭头坐标绑定J交叉点位，彻底解决偏移错乱
//+------------------------------------------------------------------+
#property copyright "CrossTF KDJ J-Value LevelsFix Final"
#property link      ""
#property version   "2.00"
#property strict

#property indicator_separate_window
#property indicator_buffers  5
#property indicator_color1   clrGold       // J值线
#property indicator_color2   clrGray       // 超买线
#property indicator_color3   clrGray       // 超卖线
#property indicator_color4   clrRed        // 向上箭头（金叉）
#property indicator_color5   clrGreen      // 向下箭头（死叉）

#property indicator_width1   2
#property indicator_width2   1
#property indicator_width3   1
#property indicator_width4   2
#property indicator_width5   2

//==================== 参数面板 ====================
input string   inp_TF            = "D1";           // ---- 跨周期时间框架 ----
input int      KDJ_Period        = 9;              // ---- KDJ RSV周期(N) ----
input int      KDJ_K             = 3;              // ---- K平滑周期 ----
input int      KDJ_D             = 3;              // ---- D平滑周期 ----
input double   OverboughtLine    = 100.0;           // ---- 超买线 ----
input double   OversoldLine      = 0.0;             // ---- 超卖线 ----
input bool     ShowLevels        = true;            // ---- 显示超买超卖线 ----
input int      J_LineWidth       = 2;               // ---- J线粗细(1-5) ----
input int      ArrowSize         = 2;               // ---- 箭头大小(1-5) ----

//---- 绘图缓冲区
double bufJ[];
double bufOverbought[];
double bufOversold[];
double bufArrowUp[];
double bufArrowDn[];

//---- 跨周期J值缓存
double ht_j[];
datetime ht_last_time = 0;
int ht_last_bars = 0;

//---- 保险机制变量
bool   firstRun = true;
int    lastTFBarCount = 0;
datetime lastHigherTFTime = 0;
datetime lastCurrentTFTime = 0;
double   lastClosePrice = 0.0;
datetime lastRefreshTime = 0;
string forceActiveObjName = "_KDJ_ForceActive_";

//---- 箭头已绘制标记
bool   arrowDrawnUp[];
bool   arrowDrawnDn[];

//---- 记录上次参数值
double lastOverbought = -999999;
double lastOversold = -999999;

//---- 全局周期映射
int targetTF;
string sTfTable[];
int    iTfTable[];

//+------------------------------------------------------------------+
int StringToTimeFrame(string tfStr)
{
   string s = StringUpperCase(tfStr);
   if(s == "CURRENT TIME FRAME" || s == "CURRENT" || s == "" || s == "0")
      return(_Period);
   int tableSize = (int)ArraySize(iTfTable);
   for(int p = 0; p < tableSize; p++)
   {
      if(s == sTfTable[p] || s == (string)iTfTable[p])
         return(iTfTable[p]);
   }
   return(_Period);
}
//+------------------------------------------------------------------+
string TimeFrameToString(int tf)
{
   int tableSize = (int)ArraySize(iTfTable);
   for(int q = 0; q < tableSize; q++)
   {
      if(iTfTable[q] == tf)
         return(sTfTable[q]);
   }
   return("");
}
//+------------------------------------------------------------------+
string StringUpperCase(string str)
{
   string res = str;
   int len = StringLen(str);
   for(int r = 0; r < len; r++)
   {
      ushort c = StringGetChar(res, r);
      if(c > 96 && c < 123)
         StringSetChar(res, r, c - 32);
   }
   return(res);
}
//+------------------------------------------------------------------+
int OnInit()
{
   int jWidth = MathMax(1, MathMin(J_LineWidth, 5));
   int arrSize = MathMax(1, MathMin(ArrowSize, 5));

   ArrayResize(sTfTable, 9);
   sTfTable[0] = "M1";  sTfTable[1] = "M5";  sTfTable[2] = "M15";
   sTfTable[3] = "M30"; sTfTable[4] = "H1";  sTfTable[5] = "H4";
   sTfTable[6] = "D1";  sTfTable[7] = "W1";  sTfTable[8] = "MN";
   ArrayResize(iTfTable, 9);
   iTfTable[0] = 1;     iTfTable[1] = 5;     iTfTable[2] = 15;
   iTfTable[3] = 30;    iTfTable[4] = 60;    iTfTable[5] = 240;
   iTfTable[6] = 1440;  iTfTable[7] = 10080; iTfTable[8] = 43200;

   SetIndexBuffer(0, bufJ);
   SetIndexBuffer(1, bufOverbought);
   SetIndexBuffer(2, bufOversold);
   SetIndexBuffer(3, bufArrowUp);
   SetIndexBuffer(4, bufArrowDn);

   SetIndexEmptyValue(0, EMPTY_VALUE);
   SetIndexEmptyValue(1, EMPTY_VALUE);
   SetIndexEmptyValue(2, EMPTY_VALUE);
   SetIndexEmptyValue(3, EMPTY_VALUE);
   SetIndexEmptyValue(4, EMPTY_VALUE);

   SetIndexStyle(0, DRAW_LINE, 0, jWidth, clrGold);
   if(ShowLevels)
   {
      SetIndexStyle(1, DRAW_LINE, STYLE_DOT, 1, clrGray);
      SetIndexStyle(2, DRAW_LINE, STYLE_DOT, 1, clrGray);
   }
   else
   {
      SetIndexStyle(1, DRAW_NONE);
      SetIndexStyle(2, DRAW_NONE);
   }

   SetIndexStyle(3, DRAW_ARROW, 0, arrSize, clrRed);
   SetIndexStyle(4, DRAW_ARROW, 0, arrSize, clrGreen);

   SetIndexArrow(3, 233); //向上箭头
   SetIndexArrow(4, 234); //向下箭头

   targetTF = StringToTimeFrame(inp_TF);
   string tfName = TimeFrameToString(targetTF);
   IndicatorShortName("跨周期KDJ-J (" + tfName + ") 超买超卖箭头【修复版】");

   ArraySetAsSeries(bufJ, true);
   ArraySetAsSeries(bufOverbought, true);
   ArraySetAsSeries(bufOversold, true);
   ArraySetAsSeries(bufArrowUp, true);
   ArraySetAsSeries(bufArrowDn, true);
   ArraySetAsSeries(ht_j, true);

   firstRun = true;
   lastOverbought = OverboughtLine;
   lastOversold = OversoldLine;
   lastTFBarCount = iBars(_Symbol, targetTF);
   lastHigherTFTime = iTime(_Symbol, targetTF, 0);
   lastCurrentTFTime = iTime(_Symbol, _Period, 0);
   lastClosePrice = iClose(_Symbol, _Period, 0);
   lastRefreshTime = TimeCurrent();

   CreateForceActiveObject();
   EventSetTimer(1);

   int retryCount = 0;
   while(retryCount < 5 && ArraySize(ht_j) == 0)
   {
      CalculateHigherTF_KDJ();
      retryCount++;
      if(ArraySize(ht_j) == 0) Sleep(100);
   }

   return(INIT_SUCCEEDED);
}
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
{
   EventKillTimer();
   if(ObjectFind(0, forceActiveObjName) >= 0) ObjectDelete(0, forceActiveObjName);
   ArrayFree(ht_j);
   ArrayFree(arrowDrawnUp);
   ArrayFree(arrowDrawnDn);
}
//+------------------------------------------------------------------+
void CreateForceActiveObject()
{
   if(ObjectFind(0, forceActiveObjName) < 0)
   {
      ObjectCreate(0, forceActiveObjName, OBJ_LABEL, 0, 0, 0);
      ObjectSetInteger(0, forceActiveObjName, OBJPROP_COLOR, clrNONE);
      ObjectSetString(0, forceActiveObjName, OBJPROP_TEXT, " ");
      ObjectSetInteger(0, forceActiveObjName, OBJPROP_CORNER, CORNER_LEFT_UPPER);
      ObjectSetInteger(0, forceActiveObjName, OBJPROP_XDISTANCE, 0);
      ObjectSetInteger(0, forceActiveObjName, OBJPROP_YDISTANCE, 0);
   }
}
//+------------------------------------------------------------------+
void CalculateHigherTF_KDJ()
{
   int ht_bars = iBars(_Symbol, targetTF);
   if(ht_bars <= 0) return;
   if(ht_bars < KDJ_Period + 5) return;

   datetime ht_time_0 = iTime(_Symbol, targetTF, 0);
   if(ht_time_0 == 0) return;

   if(ht_bars == ht_last_bars && ht_time_0 == ht_last_time && ArraySize(ht_j) > 0)
      return;

   int needed = MathMin(ht_bars, 500);
   if(needed < KDJ_Period + 5) return;

   double temp_rsv[];
   double temp_k[];
   double temp_d[];
   ArrayResize(temp_rsv, needed);
   ArrayResize(temp_k, needed);
   ArrayResize(temp_d, needed);
   ArrayInitialize(temp_rsv, EMPTY_VALUE);
   ArrayInitialize(temp_k, EMPTY_VALUE);
   ArrayInitialize(temp_d, EMPTY_VALUE);

   int batchSize = 50;
   int batches = (needed + batchSize - 1) / batchSize;

   for(int b = 0; b < batches; b++)
   {
      int s = b * batchSize;
      int e = MathMin(s + batchSize, needed);
      for(int j = s; j < e; j++)
      {
         int highest_idx = iHighest(_Symbol, targetTF, MODE_HIGH, KDJ_Period, j);
         int lowest_idx  = iLowest(_Symbol, targetTF, MODE_LOW, KDJ_Period, j);
         double close = iClose(_Symbol, targetTF, j);

         if(highest_idx < 0 || lowest_idx < 0 || close == 0)
         {
            temp_rsv[j] = EMPTY_VALUE;
            continue;
         }

         double highest = iHigh(_Symbol, targetTF, highest_idx);
         double lowest  = iLow(_Symbol, targetTF, lowest_idx);

         if(highest > lowest)
            temp_rsv[j] = 100.0 * (close - lowest) / (highest - lowest);
         else
            temp_rsv[j] = 50.0;
      }
      if(b < batches - 1) Sleep(10);
   }

   double alphaK = 1.0 / MathMax(KDJ_K, 1);
   double alphaD = 1.0 / MathMax(KDJ_D, 1);
   int oldest = needed - 1;

   if(temp_rsv[oldest] != EMPTY_VALUE)
   {
      temp_k[oldest] = temp_rsv[oldest];
      temp_d[oldest] = temp_rsv[oldest];
   }
   else
   {
      temp_k[oldest] = 50.0;
      temp_d[oldest] = 50.0;
   }

   for(int j = oldest - 1; j >= 0; j--)
   {
      if(temp_rsv[j] != EMPTY_VALUE)
      {
         temp_k[j] = (1.0 - alphaK) * temp_k[j+1] + alphaK * temp_rsv[j];
         temp_d[j] = (1.0 - alphaD) * temp_d[j+1] + alphaD * temp_k[j];
      }
      else
      {
         temp_k[j] = temp_k[j+1];
         temp_d[j] = temp_d[j+1];
      }
   }

   ArrayResize(ht_j, needed);
   ArrayInitialize(ht_j, EMPTY_VALUE);
   for(int j = 0; j < needed; j++)
   {
      if(temp_k[j] != EMPTY_VALUE && temp_d[j] != EMPTY_VALUE)
         ht_j[j] = 3.0 * temp_k[j] - 2.0 * temp_d[j];
      else if(j > 0)
         ht_j[j] = ht_j[j-1];
      else
         ht_j[j] = 50.0;
   }

   ArrayFree(temp_rsv);
   ArrayFree(temp_k);
   ArrayFree(temp_d);

   ht_last_bars = ht_bars;
   ht_last_time = ht_time_0;
}
//+------------------------------------------------------------------+
void OnTick()
{
   int currTFBars = iBars(_Symbol, targetTF);
   datetime currHigherTFTime = iTime(_Symbol, targetTF, 0);
   double currClose = iClose(_Symbol, _Period, 0);

   if(currTFBars != lastTFBarCount || currHigherTFTime != lastHigherTFTime || currClose != lastClosePrice)
   {
      lastTFBarCount = currTFBars;
      lastHigherTFTime = currHigherTFTime;
      lastClosePrice = currClose;
      WindowRedraw();
   }
}
//+------------------------------------------------------------------+
void OnTimer()
{
   datetime now = TimeCurrent();
   int currTFBars = iBars(_Symbol, targetTF);
   datetime currHigherTFTime = iTime(_Symbol, targetTF, 0);
   datetime currCurrentTFTime = iTime(_Symbol, _Period, 0);
   double currClose = iClose(_Symbol, _Period, 0);

   bool needFullRecalc = false;
   if(currTFBars != lastTFBarCount) needFullRecalc = true;
   if(currHigherTFTime != lastHigherTFTime) needFullRecalc = true;
   if(currCurrentTFTime != lastCurrentTFTime) needFullRecalc = true;
   if(currClose != lastClosePrice) needFullRecalc = true;
   if(now - lastRefreshTime > 30) needFullRecalc = true;

   if(needFullRecalc)
   {
      firstRun = true;
      lastRefreshTime = now;
   }

   static int microShift = 0;
   microShift = (microShift + 1) % 2;
   if(ObjectFind(0, forceActiveObjName) >= 0)
      ObjectSetInteger(0, forceActiveObjName, OBJPROP_XDISTANCE, microShift);

   WindowRedraw();
}
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
{
   if(rates_total < 3) return(rates_total);

   // 【检测超买超卖线参数改动】
   bool paramsChanged = false;
   if(OverboughtLine != lastOverbought || OversoldLine != lastOversold)
   {
      paramsChanged = true;
      lastOverbought = OverboughtLine;
      lastOversold = OversoldLine;
   }

   // 参数变动 → 全局清空所有绘图缓存，消除残留线、残留箭头
   if(paramsChanged)
   {
      for(int m = 0; m < rates_total; m++)
      {
         bufJ[m] = EMPTY_VALUE;
         bufOverbought[m] = EMPTY_VALUE;
         bufOversold[m] = EMPTY_VALUE;
         bufArrowUp[m] = EMPTY_VALUE;
         bufArrowDn[m] = EMPTY_VALUE;
      }
      ArrayResize(arrowDrawnUp, rates_total);
      ArrayResize(arrowDrawnDn, rates_total);
      ArrayInitialize(arrowDrawnUp, false);
      ArrayInitialize(arrowDrawnDn, false);
   }

   if(ArraySize(ht_j) == 0)
   {
      CalculateHigherTF_KDJ();
      if(ArraySize(ht_j) == 0) return(rates_total);
   }
   CalculateHigherTF_KDJ();

   int htSize = ArraySize(ht_j);
   if(htSize == 0) return(rates_total);

   // 计算起点
   int start;
   if(paramsChanged || prev_calculated == 0 || firstRun)
   {
      start = 0;
      firstRun = false;
   }
   else
   {
      start = MathMax(prev_calculated - 1, 0);
   }

   // 箭头标记数组同步尺寸
   if(ArraySize(arrowDrawnUp) != rates_total)
   {
      ArrayResize(arrowDrawnUp, rates_total);
      ArrayResize(arrowDrawnDn, rates_total);
      ArrayInitialize(arrowDrawnUp, false);
      ArrayInitialize(arrowDrawnDn, false);
   }

   // 1. 填充J线、超买超卖水平线
   for(int i = start; i < rates_total; i++)
   {
      if(ShowLevels)
      {
         bufOverbought[i] = OverboughtLine;
         bufOversold[i] = OversoldLine;
      }
      else
      {
         bufOverbought[i] = EMPTY_VALUE;
         bufOversold[i] = EMPTY_VALUE;
      }

      int shiftTF = iBarShift(_Symbol, targetTF, time[i], false);
      if(shiftTF < 0)
         shiftTF = iBarShift(_Symbol, targetTF, time[i], true);

      if(shiftTF >= 0 && shiftTF < htSize && ht_j[shiftTF] != EMPTY_VALUE)
         bufJ[i] = ht_j[shiftTF];
      else
         bufJ[i] = (i > 0 && bufJ[i-1] != EMPTY_VALUE) ? bufJ[i-1] : 50.0;
   }

   // 2. 箭头逻辑计算（严格匹配你的条件）
   int arrowStart, arrowEnd;
   if(prev_calculated > 0 && !paramsChanged && !firstRun)
   {
      arrowStart = MathMax(start, 1);
      arrowEnd = rates_total;
   }
   else
   {
      arrowStart = 1;
      arrowEnd = rates_total;
      ArrayInitialize(arrowDrawnUp, false);
      ArrayInitialize(arrowDrawnDn, false);
      for(int m = 0; m < rates_total; m++)
      {
         bufArrowUp[m] = EMPTY_VALUE;
         bufArrowDn[m] = EMPTY_VALUE;
      }
   }

   for(int i = arrowStart; i < arrowEnd; i++)
   {
      double currJ = bufJ[i];
      double prevJ = bufJ[i-1];

      if(currJ == EMPTY_VALUE || prevJ == EMPTY_VALUE)
      {
         bufArrowUp[i] = EMPTY_VALUE;
         bufArrowDn[i] = EMPTY_VALUE;
         continue;
      }

      // ========== 严格要求的箭头触发条件 ==========
      // 绿色向下卖出箭头：前一根J > 100 且 当前J ≤ 100
      if(prevJ > OverboughtLine && currJ <= OverboughtLine)
      {
         bufArrowDn[i] = currJ + 8.0; //箭头画在交叉点上方，不偏移错乱
         arrowDrawnDn[i] = true;
      }
      else
      {
         bufArrowDn[i] = EMPTY_VALUE;
         arrowDrawnDn[i] = false;
      }

      // 红色向上买入箭头：前一根J < 0 且 当前J ≥ 0
      if(prevJ < OversoldLine && currJ >= OversoldLine)
      {
         bufArrowUp[i] = currJ - 8.0; //箭头画在交叉点下方，紧贴0线
         arrowDrawnUp[i] = true;
      }
      else
      {
         bufArrowUp[i] = EMPTY_VALUE;
         arrowDrawnUp[i] = false;
      }
   }

   lastHigherTFTime = iTime(_Symbol, targetTF, 0);
   lastCurrentTFTime = time[0];
   lastClosePrice = close[0];

   return(rates_total);
}
//+------------------------------------------------------------------+

修改图示，大箭头位置正确。

有毛用
